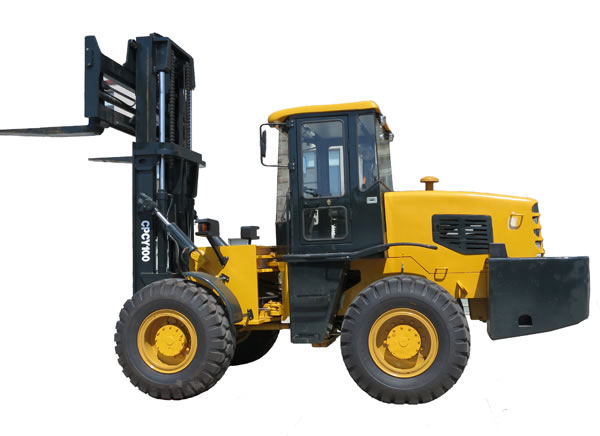

10T Four Wheel Drive Forklift

Home » Products » Forklift Trucks » 4WD Diesel Forklifts » 10T Four Wheel Drive Forklift
10T Four Wheel Drive Forklift 10T Four Wheel Drive Forklift
Technical Parameter of 10T Four Wheel Drive Forklift
Item Unit Standard Model Optional Model
Rated Load kg 10000 10000
Length Without Fork mm 5420 5420
With Fork mm 6650 6650
Width mm 2620 2620
Height Height of the Mast mm 3035 3035
Height of the Mast mm 3400 3400
Full Height When Max. Lifting mm 4430 5880
Wheelbase mm 2745 2745
Front Overhang Distance mm 930 930
Front Wheel Tread mm 1850 1850
Rear Wheel Tread mm 1805 1805
Ground Distance mm 390 390
Max Lifting Height mm 3000 4500
Forward/Rear Tilting Angle of Mast ( °) 6/12 6/12
Standard Dead Weight (No Load) kg 14500
Full Load Max. Lifting Speed mm/s 187 187
Min. Turning Radius mm 5500 5500
Max. Speed km/h 24 24
Max. Gradeability (Full Load) % 20 20
Max. Traction Force (Full Load) kN 75 75
Load Center Distance mm 600 600
Engine Model -- Dongfeng Cummins 6BTA5.9-C130，97KW @2200 Dongfeng Cummins 6BTA5.9-C13097KW @2200
