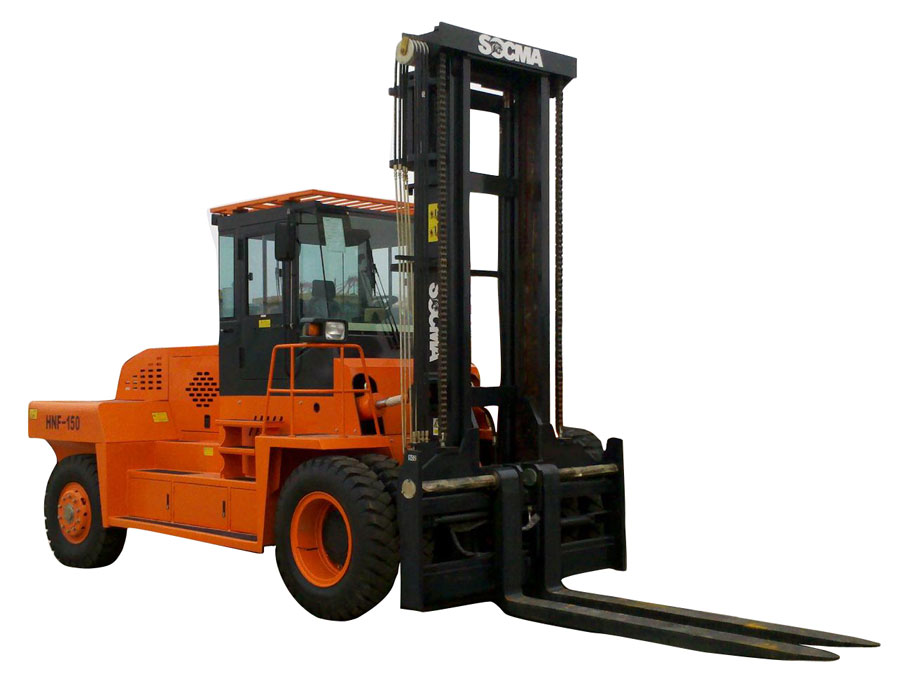

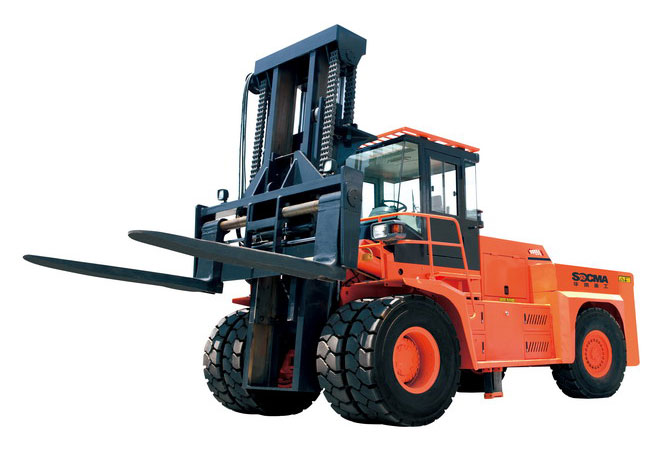

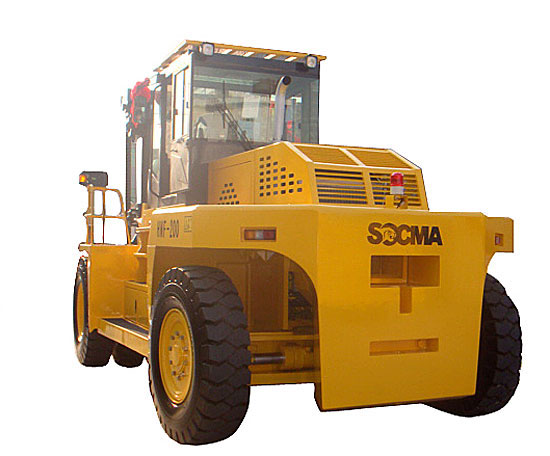

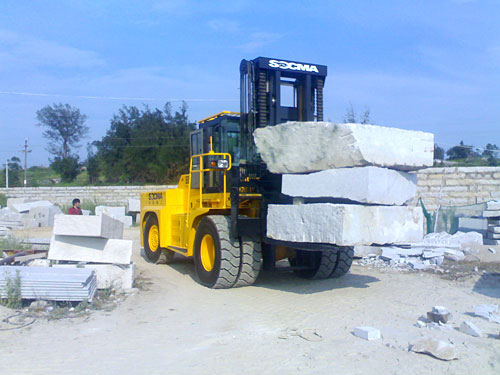

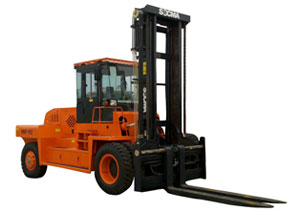

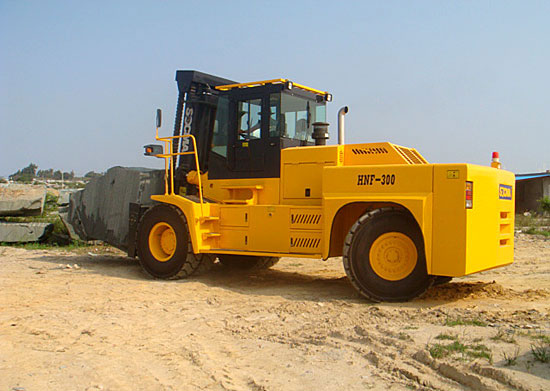

Stone Diesel Forklift Truck

  • 20T Stone Diesel Forklift Truck Height: 3500mm
    Mast lifting height :3300mm
    Fork size (L*W*H) :1800X260X100mm
    Min. turning radius :5800mm
    Max. travel speed (with load) : 25Km/h
  • 25T Stone Diesel Forklift Truck Min. turning radius :6500mm
    Max. travel speed (with load):28Km/h
    Lifting speed (with load):180mm/s
    Gradeability (with load):20%
    Weight : 32000Kg
Stone Diesel Forklift Truck

Features of Stone Diesel Forklift Truck
1. Our stone diesel forklift truck utilizes a powerful diesel engine with reliable performance and good economy.
2. The diesel forklift truck offers hydraulic drive, planetary hub reduction gear with stepless control, and easy operation.
3. The full hydraulic steering system allows easy turning. The wheels have pure rolling movement during steering, so the tyre wear is minimized.
4. The stone diesel forklift truck uses heavy truck type high magnification ratio braking system to ensure heavy duty braking capability and reliability.
5. The forklift truck comes with optimized framework and high stability. The turning radius is small, so the lift truck can steer flexibly and easily.
6 The high visibility mast design gives the driver a broad view.
7. The special fork for stone is firm and durable with long life.
8. With high performance/cost ratio, the accessories are highly universal and enable simple and quick maintenance.
9. The lifting height of the stone diesel forklift truck can be up to over 3m, which is customizable.
10. Unique oil cylinder is used which facilitates maintenance for customers.
11. The mast made using special roller bearings provides extended life and improved reliability.
12. The use of pressure limiting valve ensures misoperation prevention and reduced damage to the hydraulic system.

Parameters of the Stone Diesel Forklift Truck

Item Unit HNF150S HNF160S HNF200S HNF250S HNF300S
Rated load capacity Kg 15000 16000 20000 25000 30000
Weight Kg 20000 20000 26000 30000 37550
Max. lifting height mm 3500 3500 3300 3300 3000
Load center distance mm 600 600 900 900 1250
Max. lifting speed mm/s 300 300 180 180 290
Mast tilt angle (Front/Rear) deg. 6/12
Max. travel speed Km/h 30 30 25 28 28
Min. turning radius mm 5800 5800 5800 6300 8500
Min. ground clearance mm 250 250 230 230 350
Gradeability % 20
Total length (with fork) mm 7410 7430 7770 8250 9175
Total width mm 2750 2750 3020 3020 3000
Total height mm 3625 3625 3500 3500 3850
Fork size mm 1800*180*90 1800*180*90 2000*260*100 1800*280*110 2500*330*110
Wheelbase mm 3800 3800 4000 4100 4100
Front wheel mm 2060 2060 2200 2200 2160
Rear wheel mm 2330 2330 2390 2390 2150
Rated power kw 142 142 160 179 194
Rated revolution speed rpm 2200 2200 2200 2200 2200
Oil pressure of hydraulic system Mpa 16 16 16 18 18
Tyre specifications
Front   4x12.00-24-18PR 4x12.00-24-18PR 4x14.00-24-24PR 4x14.00-24-28PR 4x14.00-24-28PR
Rear   2x12.00-20-18PR 2x12.00-20-18PR 2x14.00-24-24PR 2x14.00-24-28PR 2x14.00-24-28PR

1. The product parameters are subject to change without prior notice.
2. The actual product may differ slightly from the images shown.

As an experienced stone diesel forklift truck manufacturer in China, SOCMA also offers container diesel forklift truck, telescopic forklift, telescopic handler, and telescopic crane loader, among others.
